ACFの画像で、メイソンリーレイアウトのLightboxギャラリーを作成

  • Plugin
  • WordPressでは、ギャラリープラグインは、Modulaなど多くあります。今回は、ACFの画像で、メイソンリーレイアウトのLightboxギャラリーを作成する方法を紹介します。

     出典 : Lightbox2

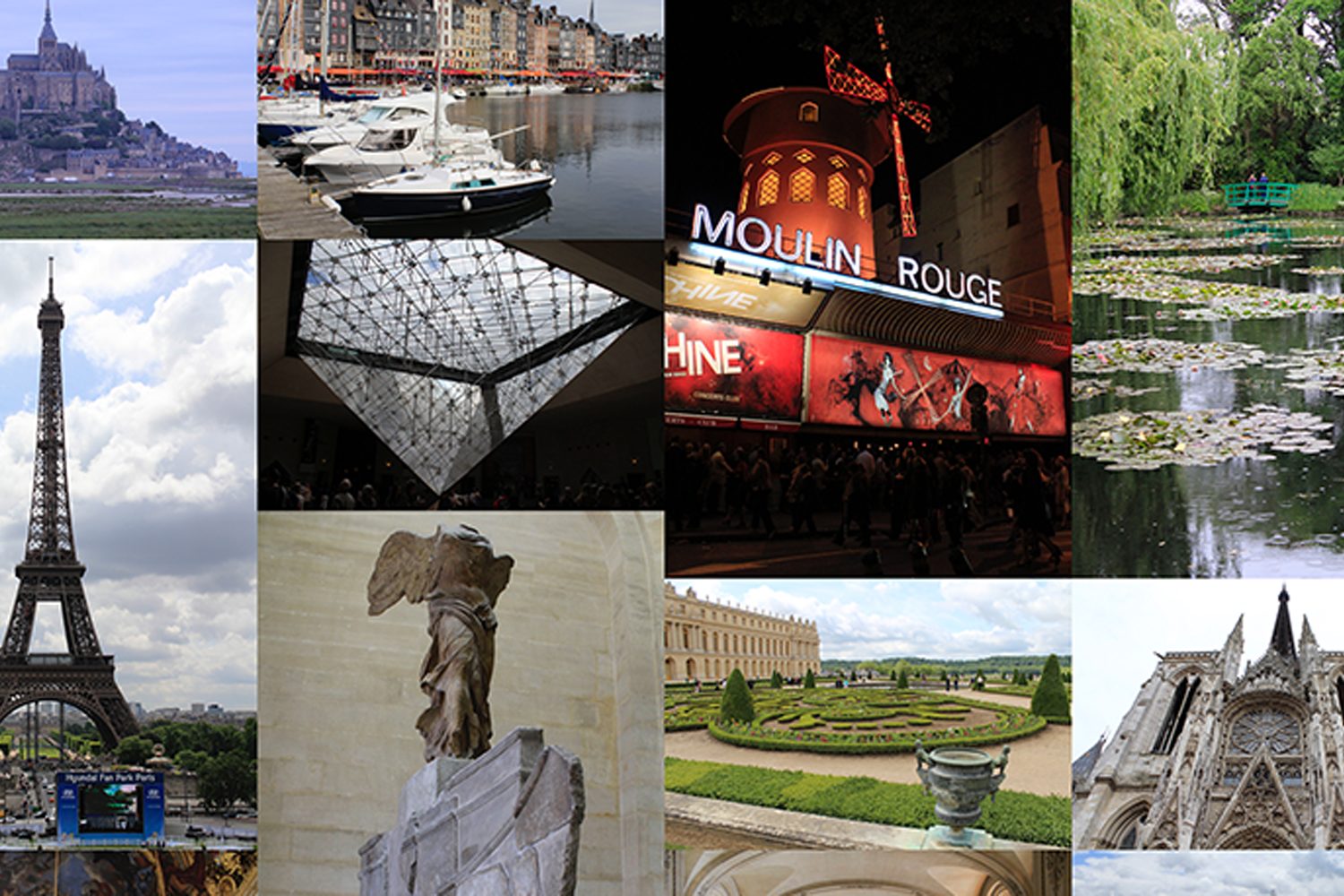

    今回のDEMOは、フランス旅行の写真ギャラリーです。

    16枚の画像をギャラリーにしています。画像をクリックするとライトボックスで表示されます。SPでは2カラム、タブレットでは3カラム、PCでは4カラムになります。

    ACF設定

    フィールドタイプは、画像です。フィールドラベルに編集画面に表示する名前、フィールド名にPHPに記入する名前を設定します。戻り値の形式は、画像URLです。ライブラリすべてです。

    フィールドタイプは、画像

    項目設定値
    フィールドタイプ画像
    フィールドラベルギャラリー画像01
    フィールド名add_galleryphoto01
    戻り値の形式画像URL
    ライブラリすべて

    同じように、16個の画像フィールドを作成します。これで、ACF設定は完了です。

    16個の画像フィールドを作成

    コード

    シングルページループ内に下記コードを入力します。

    <ul class="gallery">
    	<?php if (get_field('add_galleryphoto01')): ?>
    		<li>
    			<a href="<?php the_field('add_galleryphoto01'); ?>" data-lightbox="gallery1" data-title="">
    				<img src="<?php the_field('add_galleryphoto01'); ?>" alt="">
    			</a>
    		</li>
    	<?php endif ?>
    	<?php if (get_field('add_galleryphoto02')): ?>
    		<li>
    			<a href="<?php the_field('add_galleryphoto02'); ?>" data-lightbox="gallery1" data-title="">
    				<img src="<?php the_field('add_galleryphoto02'); ?>" alt="">
    			</a>
    		</li>
    	<?php endif ?>
    	<?php if (get_field('add_galleryphoto03')): ?>
    		<li>
    			<a href="<?php the_field('add_galleryphoto03'); ?>" data-lightbox="gallery1" data-title="">
    				<img src="<?php the_field('add_galleryphoto03'); ?>" alt="">
    			</a>
    		</li>
    	<?php endif ?>
    	<?php if (get_field('add_galleryphoto04')): ?>
    		<li>
    			<a href="<?php the_field('add_galleryphoto04'); ?>" data-lightbox="gallery1" data-title="">
    				<img src="<?php the_field('add_galleryphoto04'); ?>" alt="">
    			</a>
    		</li>
    	<?php endif ?>
    	<?php if (get_field('add_galleryphoto05')): ?>
    		<li>
    			<a href="<?php the_field('add_galleryphoto05'); ?>" data-lightbox="gallery1" data-title="">
    				<img src="<?php the_field('add_galleryphoto05'); ?>" alt="">
    			</a>
    		</li>
    	<?php endif ?>
    	<?php if (get_field('add_galleryphoto06')): ?>
    		<li>
    			<a href="<?php the_field('add_galleryphoto06'); ?>" data-lightbox="gallery1" data-title="">
    				<img src="<?php the_field('add_galleryphoto06'); ?>" alt="">
    			</a>
    		</li>
    	<?php endif ?>
    	<?php if (get_field('add_galleryphoto07')): ?>
    		<li>
    			<a href="<?php the_field('add_galleryphoto07'); ?>" data-lightbox="gallery1" data-title="">
    				<img src="<?php the_field('add_galleryphoto07'); ?>" alt="">
    			</a>
    		</li>
    	<?php endif ?>
    	<?php if (get_field('add_galleryphoto08')): ?>
    		<li>
    			<a href="<?php the_field('add_galleryphoto08'); ?>" data-lightbox="gallery1" data-title="">
    				<img src="<?php the_field('add_galleryphoto08'); ?>" alt="">
    			</a>
    		</li>
    	<?php endif ?>
    	<?php if (get_field('add_galleryphoto09')): ?>
    		<li>
    			<a href="<?php the_field('add_galleryphoto09'); ?>" data-lightbox="gallery1" data-title="">
    				<img src="<?php the_field('add_galleryphoto09'); ?>" alt="">
    			</a>
    		</li>
    	<?php endif ?>
    	<?php if (get_field('add_galleryphoto10')): ?>
    		<li>
    			<a href="<?php the_field('add_galleryphoto10'); ?>" data-lightbox="gallery1" data-title="">
    				<img src="<?php the_field('add_galleryphoto10'); ?>" alt="">
    			</a>
    		</li>
    	<?php endif ?>
    	<?php if (get_field('add_galleryphoto11')): ?>
    		<li>
    			<a href="<?php the_field('add_galleryphoto11'); ?>" data-lightbox="gallery1" data-title="">
    				<img src="<?php the_field('add_galleryphoto11'); ?>" alt="">
    			</a>
    		</li>
    	<?php endif ?>
    	<?php if (get_field('add_galleryphoto12')): ?>
    		<li>
    			<a href="<?php the_field('add_galleryphoto12'); ?>" data-lightbox="gallery1" data-title="">
    				<img src="<?php the_field('add_galleryphoto12'); ?>" alt="">
    			</a>
    		</li>
    	<?php endif ?>
    	<?php if (get_field('add_galleryphoto13')): ?>
    		<li>
    			<a href="<?php the_field('add_galleryphoto13'); ?>" data-lightbox="gallery1" data-title="">
    				<img src="<?php the_field('add_galleryphoto13'); ?>" alt="">
    			</a>
    		</li>
    	<?php endif ?>
    	<?php if (get_field('add_galleryphoto14')): ?>
    		<li>
    			<a href="<?php the_field('add_galleryphoto14'); ?>" data-lightbox="gallery1" data-title="">
    				<img src="<?php the_field('add_galleryphoto14'); ?>" alt="">
    			</a>
    		</li>
    	<?php endif ?>
    	<?php if (get_field('add_galleryphoto15')): ?>
    		<li>
    			<a href="<?php the_field('add_galleryphoto15'); ?>" data-lightbox="gallery1" data-title="">
    				<img src="<?php the_field('add_galleryphoto15'); ?>" alt="">
    			</a>
    		</li>
    	<?php endif ?>
    	<?php if (get_field('add_galleryphoto16')): ?>
    		<li>
    			<a href="<?php the_field('add_galleryphoto16'); ?>" data-lightbox="gallery1" data-title="">
    				<img src="<?php the_field('add_galleryphoto16'); ?>" alt="">
    			</a>
    		</li>
    	<?php endif ?>
    </ul>

    jQueryLightbox2を読み込みます。JavaScriptファイルを作成し、各コードを入力し、読み込みます。

    lightbox.option({
      'wrapAround': true,
      'albumLabel': ' %1 / total %2 ',
      'maxWidth' :'1000',
    })

    CSSでスタイルを整えます。

    .gallery{
        columns: 4;
        padding: 0;
        margin: 0;
        column-gap: 0;
    }

    .gallery li {
        margin-bottom: 0px;
    }

    .gallery img{
    	width: 100%;
    	height: auto;
    	vertical-align: bottom;
    }

    @media only screen and (max-width: 1250px) {
    	.gallery{
    	columns: 3;
    	}
    }

    @media only screen and (max-width: 740px) {
    	.gallery{
    	columns: 2;
    	}
    }

    設置

    編集画面にACFライトボックスギャラリーフィールドが作成されます。画像を追加をクリックし、メディアライブラリから画像を選択すると、フィールドに画像が設定されます。同じように、全てのフィールドに画像を設定します。これで完成です。

    画像を追加をクリック

    メディアライブラリから画像を選択

    フィールドに画像が設定

    同じように、全てのフィールドに画像を設定

    以上で今回の説明は終了です。WordPressでは、ギャラリーはプラグインを使った方が便利ですが、今回のACF設定だと、編集画面のみで設定できるので、簡単に更新できます。
